    Environmental Gas Powered Steam Boiler , High Efficiency Natural Gas Boiler

    Ask Lasest Price
    Brand Name : Yinyu
    Model Number : WNS
    Certification : ISO/BV
    Price : $5,000.00-$10,000.00
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 100 Qty/per month
    Delivery Time : 10-30 work days
    • Product Details
    • Company Profile

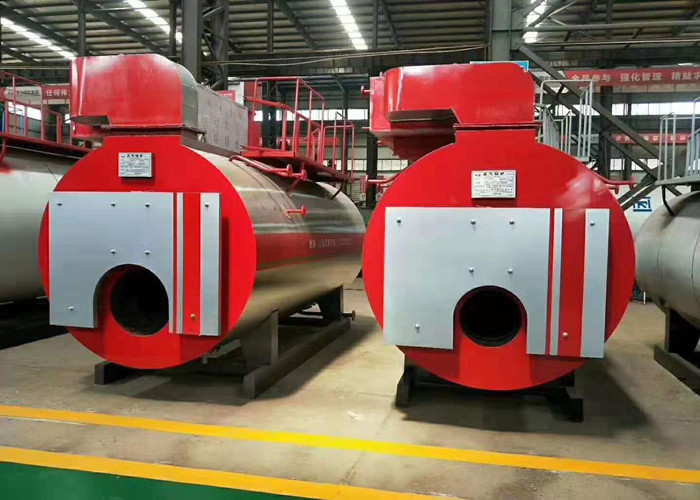

    Environmental Gas Powered Steam Boiler , High Efficiency Natural Gas Boiler

    Fire Tube Fully Automatic System Control Environmental Protecting Gas Fired Steam Boiler


    Automatic regulation of thermal process variables such as water feed and combustion of boilers. Realizing the automatic control of boilers is of great economic significance for safe operation and energy saving. Depending on the structure, mode of operation and fuel used in the boiler, the control system also varies. Generally small boilers only water level adjustment system, medium-sized boilers should have combustion and furnace pressure adjustment system, large boilers also need aerobic correction system, and the boiler supplying superheated steam also need to increase the superheated steam temperature adjustment system.

    Environmental Gas Powered Steam Boiler , High Efficiency Natural Gas Boiler


    product parameters


    WNS2-1.25-YQ


    NO;NameUnitNumberDescription
    1Rated evaporationt/h2
    2Rated working powerMpa1.25
    3Rated outlet ℃193
    4Design efficiency

    92.6(Oil)

    92.46(Gas)

    5Boiler heat efficiencyMore than 98%
    6Design fuels/Light oil,Gas
    7Fuels LHVMJ/kg42.917(Oil)
    MJ/Nm335.438(Gas)
    8Consumption of fuelskg/h137.9(Oil)
    Nm³/h167.325(Gas)
    9Radiation heating area8.527
    Convection heating area41.838
    GGH heating area23.195
    10Fume temperature137.863(Oil)
    134.28 (Gas)
    11Fume temperature60-80
    12Excess air coefficient/1.15
    13Volumem35
    14Bulk weightkg9700
    15Bulk sizemm4531×2150×2544
    16ChimneymmΦ500×10000
    17Total power consumptionKWOil:13,Gas:11
    18Combustion model/Micro positive pressureChamber combustion
    19Boiler structure feature(Three-pass structure)Horizontal-type chamber combustion
    20Control wayFull automation/Manual
    21Ignition wayHigh-tension/Electrode

    WNS4-1.25-YQ


    NO;NameUnitNumberDescription
    1Rated evaporationt/h4
    2Rated working powerMpa1.25
    3Rated outlet ℃194
    4Design efficiency

    92.06(Oil)

    92.17(Gas)

    5Boiler heat efficiencyMore than 98%
    6Design fuels/Light oil,Gas
    7Fuels LHVMJ/kg42.917(Oil)
    MJ/Nm335.438(Gas)
    8Consumption of fuelskg/h275.8(Oil)
    Nm³/h334.65(Gas)
    9Radiation heating area10.955
    Convection heating area83.887
    GGH heating area21.488
    10Fume temperature140.6(Oil)
    137.75 (Gas)
    11Fume temperature60-80
    12Excess air coefficient/1.15
    13Volumem35
    14Bulk weightkg8000
    15Bulk sizemm4300×1900×2400
    16ChimneymmΦ400×10000
    17Combustion model/Micro positive pressureChamber combustion
    18Boiler structure feature(Three-pass structure)Horizontal-type chamber combustion
    19Control wayFull automation/Manual
    20Ignition wayHigh-tension/Electrode

    Our services


    Pre-sale service:
    We help customer choose the best boiler model according to

    different requirements of various industry. Before delivery we

    will provide foundation drawing, layout drawing, boiler room

    layout, etc.
    In-sale service:
    We keep 24 hours online and keep close contacts during the

    production process to ensure on time delivery with perfect

    finished product.
    After-sale service:

    1. provide full range of original spare parts.
    2. Engineers abroad installation and commissioning service is

    available.
    3. Our engineers will held a training for boiler workers to

    ensure the safe operation.
    4 .Free maintenance and repair for one year and lifelong

    service.
