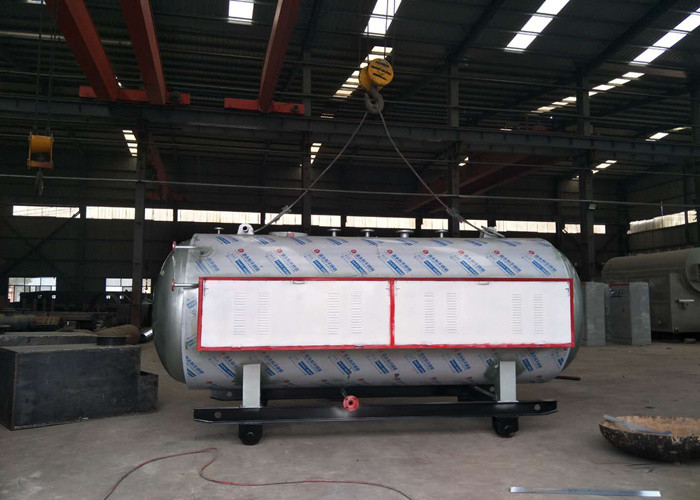

7,000 KW Non Pollution And Fully Automatic Electric Heating Hot
Water Boiler
Hot water boiler maintenance:
1. Hot water boilers should pay attention to the following points
during operation:
(1) Do not allow the furnace smoke is burning, because it is easy
to burn the coal-throwing door, look at the fire door and curved
pipe brick and so on.
(2) If the fan vibration, should stop the inspection, generally for
the internal impeller wear, should be replaced.
3. No water should be stored on the ground plane at the bottom of
the hot water boiler to prevent wet corrosion of the base.
2. Hot water boiler situ for 2-3 weeks, should be checked once.
(1) From the upper two holes behind the hot water boiler to remove
the upper ash in the two wing edgy.
(2) Open the front smoke box and rear inspection hole, if there is
ash in the pipe should be removed, such as no ash, can be extended
opening time, once a month, such as still no ash, can be extended
to 2-3 months to open once, at the same time check whether the
smoke box closed tight, pipe end whether leakage, if there should
be timely welding.
(3) Properly check the fan triangle belt, in order to prevent
slipping when running, reduce the wind pressure on the belt wear.
4. Leakage at the interface of valves and pipe flanges should be
repaired.
3. The operation of hot water boiler every 3-6 months, should stop
the furnace for comprehensive inspection and maintenance, in
addition to doing the above 2 work, the following work must be
carried out:
1. Remove the inside of the pot, the water-cooled wall and the
scale and sludge inside the left and right container, and rinse it
with clean water.
(2) Remove the soot and soot from the water wall tube and the fire
surface of the pot.
(3) Check the boiler welding steel plate inside and outside
corrosion phenomenon, if there is a serious defect should be
repaired immediately, if the defect is not serious, can also be
left to the next stop furnace repair, if found suspicious, but does
not affect the safety of production, should make a record, for
future reference.
(4). After the inspection, the boiler paint can be applied on the
fire surface to prevent corrosion.
(5) Check that the rolling shaft of the fan is normal and the wear
level of the impeller and housing.
(6) If necessary, the furnace wall and outer mask shell,
moisturizing layer, etc. removed, in order to thoroughly check, if
found to be seriously damaged parts, must be repaired before
continue to use, at the same time, the inspection results and
repair conditions, filled in the boiler operation register.
4. Hot water boiler long-term maintenance methods: there are dry
and wet method two, stop furnace for more than one month, should
use dry maintenance method, stop furnace less than one month can
use wet maintenance method.
Parameter
CWDR7-95/70
| NO; | Name | Unit | Number | Description |
| 1 | Rated efficiency | MW | 7 | |
| 2 | Water volume | M³ | 14 | |
| 3 | Rated outlet/inlet water temperature | ℃ | 95/70 | |
| 4 | Heating efficiency | % | 99 | |
| 5 | Output/inlet diameter | mm | DN100 | |
| 6 | Design fuels | / | Electric | |
| 7 | Blow down valve diameter | mm | DN100 | |
| 8 | Heating area(room) | ㎡ | 60000 | |
| 9 | Hot water output | M³/h | 18 | |
| 10 | Bulk size | mm | 12000×4000×4600 | |
Our services
Pre-sale service:
We help customer choose the best boiler model according to
different requirements of various industry. Before delivery we
will provide foundation drawing, layout drawing, boiler room
layout, etc.
In-sale service:
We keep 24 hours online and keep close contacts during the
production process to ensure on time delivery with perfect
finished product.
After-sale service:
1. provide full range of original spare parts.
2. Engineers abroad installation and commissioning service is
available.
3. Our engineers will held a training for boiler workers to
ensure the safe operation.
4. Free maintenance and repair for one year and lifelong
service.
Boiler application areas
