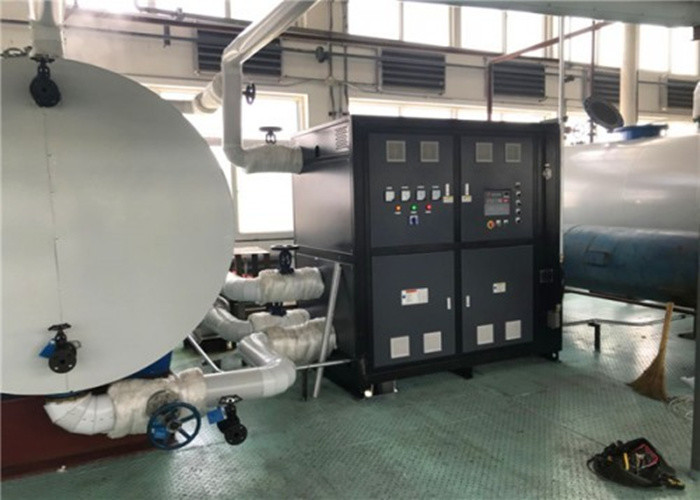

High efficiency environment protection automatic electric heating
thermal oil boiler
1, electric heating thermal oil furnace as a new type, safe,
environmental protection of energy-efficient equipment, its
characteristics are high thermal efficiency, strong thermal
stability, energy saving, normal pressure operation, safe and
reliable, no water resources consumption.
2, electric heating thermal oil furnace structure principle is:
electric heating thermal oil furnace through the high temperature
oil pump, the heating of the heat transfer oil to the use of heat
equipment, after thermal unloading, and then return edgy heating
heating tube, using high temperature oil pump will guide the heat
oil to circulate, heat transfer to the heat equipment, and then
re-circulate the pump, return to the heat heater, absorb heat, and
then use the heat transfer to the heat equipment, so repeated heat
transfer.
3, electric heating thermal oil furnace is widely used in chemical,
paper, textile printing and dyeing, building materials, food,
medicine and other industries, in energy conservation and
consumption reduction, health production, environmental protection,
improve economic and social benefits and other aspects play an
important role.
Part of product parameters
DRYL-700
| NO; | Name | Unit | Number | Description |
| 1 | Rated thermal power | KW | 700 | |
| 2 | Rated working power | Mpa | 1.0 | |
| 3 | Rated inlet/outlet ℃ | ℃ | 310/290 | |
| 4 | Design efficiency | ％ | 92.45(Oil) 92.13(Gas) | |
| 5 | Boiler heat efficiency | ％ | More than 98% | Be added economizer |
| 6 | Design fuels | / | Light oil,Gas | |
| 7 | Fuels LHV | MJ/kg | 42.917(Oil) | |
| MJ/Nm3 | 35.438(Gas) | |
| 8 | Consumption of fuels | kg/h | 70.77(Oil) | |
| Nm³/h | 86.53(Gas) | Be added economizer |
| 9 | Radiation heating area | m² | 7.199 | |
| Convection heating area | m² | 28.71 | |
| GGH heating area | m² | 10.965 | |
| 10 | Fume temperature | ℃ | 136.68(Oil) | |
| ℃ | 137.02 (Gas) | |
| 11 | Fume temperature | ℃ | 60-80 | Be added economizer |
| 12 | Excess air coefficient | / | 1.15 | |
| 13 | Volume | m3 | 0.46 | |
| 14 | Bulk weight | kg | 4250 | |
| 15 | Bulk size | mm | 3256×1727×2181 | |
| 16 | Chimney | mm | Φ325×10000 | |
| 17 | Combustion model | / | Micro positive pressure | Chamber combustion |
| 18 | Boiler structure feature | Horizontal-type chamber combustion |
| 19 | Control way | Full automation/Manual |
| 20 | Ignition way | High-tension/Electrode |
DRYL-1400
| NO; | Name | Unit | Number | Description |
| 1 | Rated thermal power | KW | 1400 | |
| 2 | Rated working power | Mpa | 1.0 | |
| 3 | Rated inlet/outlet ℃ | ℃ | 310/290 | |
| 4 | Design efficiency | ％ | 92.33(Oil) 92.03(Gas) | |
| 5 | Boiler heat efficiency | ％ | More than 98% | Be added economizer |
| 6 | Design fuels | / | Light oil,Gas | |
| 7 | Fuels LHV | MJ/kg | 42.917(Oil) | |
| MJ/Nm3 | 35.438(Gas) | |
| 8 | Consumption of fuels | kg/h | 138.93(Oil) | |
| Nm³/h | 169.53(Gas) | Be added economizer |
| 9 | Radiation heating area | m² | 13.124 | |
| Convection heating area | m² | 71.233 | |
| GGH heating area | m² | 29.845 | |
| 10 | Fume temperature | ℃ | 139.26(Oil) | |
| ℃ | 139.27 (Gas) | |
| 11 | Fume temperature | ℃ | 60-80 | Be added economizer |
| 12 | Excess air coefficient | / | 1.15 | |
| 13 | Volume | m3 | 1.08 | |
| 14 | Bulk weight | kg | 8389 | |
| 15 | Bulk size | mm | 4869×2070×2698 | |
| 16 | Chimney | mm | Φ400×10000 | |
| 17 | Combustion model | / | Micro positive pressure | Chamber combustion |
| 18 | Boiler structure feature | Horizontal-type chamber combustion |
| 19 | Control way | Full automation/Manual |
| 20 | Ignition way | High-tension/Electrode |
Our services
Pre-sale service:
We help customer choose the best boiler model according to
different requirements of various industry. Before delivery we
will provide foundation drawing, layout drawing, boiler room
layout, etc.
In-sale service:
We keep 24 hours online and keep close contacts during the
production process to ensure on time delivery with perfect
finished product.
After-sale service:
1. provide full range of original spare parts.
2. Engineers abroad installation and commissioning service is
available.
3. Our engineers will held a training for boiler workers to
ensure the safe operation.
4. Free maintenance and repair for one year and lifelong
service.
