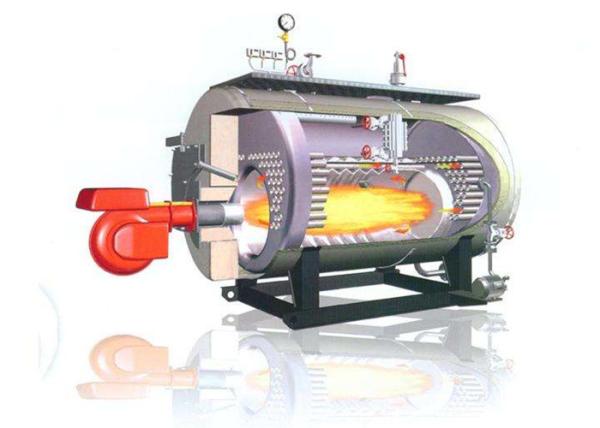

Adaptable Durable Oil Fired Gas Fired Thermal Oil Boiler For
Industry
Thermal oil boilers are widely used in:
1, food and chemical industry: polymerization, condensation,
distillation, melting, dehydration, forced insulation and so on.
2, wood industry: multi-clutch board, fiberboard pressurized
molding, laminate plate heating, hot plate heating, oil press
temperature control, wood drying and so on.
3, building materials industry: gypsum board drying, asphalt
heating, concrete componentmaintenance.
4, machinery industry: paint, printing and drying.
Product parameters
YY(Q)W-700Y(Q)
| NO; | Name | Unit | Number | Description |
| 1 | Rated thermal power | KW | 700 | |
| 2 | Rated working power | Mpa | 1.0 | |
| 3 | Rated inlet/outlet ℃ | ℃ | 310/290 | |
| 4 | Design efficiency | ％ | 92.45(Oil) 92.13(Gas) | |
| 5 | Boiler heat efficiency | ％ | More than 98% | Be added economizer |
| 6 | Design fuels | / | Light oil,Gas | |
| 7 | Fuels LHV | MJ/kg | 42.917(Oil) | |
| MJ/Nm3 | 35.438(Gas) | |
| 8 | Consumption of fuels | kg/h | 70.77(Oil) | |
| Nm³/h | 86.53(Gas) | Be added economizer |
| 9 | Radiation heating area | m² | 7.199 | |
| Convection heating area | m² | 28.71 | |
| GGH heating area | m² | 10.965 | |
| 10 | Fume temperature | ℃ | 136.68(Oil) | |
| ℃ | 137.02 (Gas) | |
| 11 | Fume temperature | ℃ | 60-80 | Be added economizer |
| 12 | Excess air coefficient | / | 1.15 | |
| 13 | Volume | m3 | 0.46 | |
| 14 | Bulk weight | kg | 4250 | |
| 15 | Bulk size | mm | 3256×1727×2181 | |
| 16 | Chimney | mm | Φ325×10000 | |
| 17 | Combustion model | / | Micro positive pressure | Chamber combustion |
| 18 | Boiler structure feature | Horizontal-type chamber combustion |
| 19 | Control way | Full automation/Manual |
| 20 | Ignition way | High-tension/Electrode |
YY(Q)W-1400Y(Q)
| NO; | Name | Unit | Number | Description |
| 1 | Rated thermal power | KW | 1400 | |
| 2 | Rated working power | Mpa | 1.0 | |
| 3 | Rated inlet/outlet ℃ | ℃ | 310/290 | |
| 4 | Design efficiency | ％ | 92.33(Oil) 92.03(Gas) | |
| 5 | Boiler heat efficiency | ％ | More than 98% | Be added economizer |
| 6 | Design fuels | / | Light oil,Gas | |
| 7 | Fuels LHV | MJ/kg | 42.917(Oil) | |
| MJ/Nm3 | 35.438(Gas) | |
| 8 | Consumption of fuels | kg/h | 138.93(Oil) | |
| Nm³/h | 169.53(Gas) | Be added economizer |
| 9 | Radiation heating area | m² | 13.124 | |
| Convection heating area | m² | 71.233 | |
| GGH heating area | m² | 29.845 | |
| 10 | Fume temperature | ℃ | 139.26(Oil) | |
| ℃ | 139.27 (Gas) | |
| 11 | Fume temperature | ℃ | 60-80 | Be added economizer |
| 12 | Excess air coefficient | / | 1.15 | |
| 13 | Volume | m3 | 1.08 | |
| 14 | Bulk weight | kg | 8389 | |
| 15 | Bulk size | mm | 4869×2070×2698 | |
| 16 | Chimney | mm | Φ400×10000 | |
| 17 | Combustion model | / | Micro positive pressure | Chamber combustion |
| 18 | Boiler structure feature | Horizontal-type chamber combustion |
| 19 | Control way | Full automation/Manual |
| 20 | Ignition way | High-tension/Electrode |
Our services
Pre-sale service:
We help customer choose the best boiler model according to
different requirements of various industry. Before delivery we
will provide foundation drawing, layout drawing, boiler room
layout, etc.
In-sale service:
We keep 24 hours online and keep close contacts during the
production process to ensure on time delivery with perfect
finished product.
After-sale service:
1. provide full range of original spare parts.
2. Engineers abroad installation and commissioning service is
available.
3. Our engineers will held a training for boiler workers to
ensure the safe operation.
4. Free maintenance and repair for one year and lifelong
service.
