Brand Name : | Yinyu |
Model Number : | CWNS |
Certification : | ISO/BV |
Price : | $5,000.00-$10,000.00 |
Payment Terms : | L/C, T/T, Western Union |
Supply Ability : | 100 Qty/per month |
Delivery Time : | 10-30 work days |

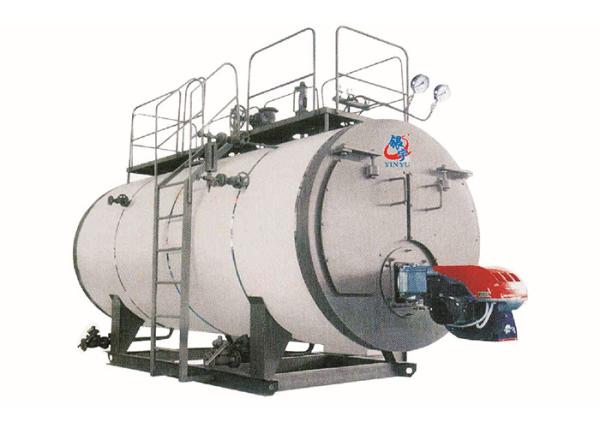

Oil Fired Gas Fired Hot Water Boiler Supply Hot Water For Agriculture Thermal insulation
Gas hot water boiler is a hot water boiler with burning natural gas
as fuel, it is the current hot water boiler products in the
best-selling products, because it has the advantages of
environmental protection clean, easy operation, high thermal
efficiency, compared with the high operating cost of electric
boilers, coal-fired boiler air pollution, it can be said to be the
most moderate products.
Gas hot water boiler can be divided into horizontal gas hot water
boiler and vertical gas hot water boiler, the difference between
the two is the horizontal boiler size is larger, high thermal
efficiency, can meet the needs of large enterprises, and vertical
boiler is relatively small, do not take up too much space, can meet
the needs of small business users, of course, the price is much
lower than horizontal boiler.
Part of product paremeters
CWNS0.7-95/70
NO; | Name | Unit | Number | Description |
1 | Rated efficiency | MW | 0.7 | |
2 | Water volume | M³ | 1.4 | |
3 | Rated outlet/inlet water temperature | ℃ | 95/70 | |
4 | Heating efficiency | % | 99 | |
5 | Output/inlet diameter | mm | DN100 | |
6 | Design fuels | / | Oil/Gas | |
7 | Blow down valve diameter | mm | DN100 | |
8 | Heating area(room) | ㎡ | 6000 | |
9 | Hot water output | M³/h | 18 | |
10 | Bulk size | mm | 2400×1200×1800 |
CWNS1.4-95/70
NO; | Name | Unit | Number | Description |
1 | Rated efficiency | MW | 1.4 | |
2 | Water volume | M³ | 3.75 | |
3 | Rated outlet/inlet water temperature | ℃ | 95/70 | |
4 | Heating efficiency | % | 99 | |
5 | Output/inlet diameter | mm | DN125 | |
6 | Design fuels | / | Oil/Gas | |
7 | Blow down valve diameter | mm | DN125 | |
8 | Heating area(room) | ㎡ | 12500 | |
9 | Hot water output | M³/h | 36 | |
10 | Bulk size | mm | 2800×1700×2300 |
Pre-sale service:
We help customer choose the best boiler model according to
different requirements of various industry. Before delivery we
will provide foundation drawing, layout drawing, boiler room
layout, etc.
In-sale service:
We keep 24 hours online and keep close contacts during the
production process to ensure on time delivery with perfect
finished product.
After-sale service:
1. provide full range of original spare parts.
2. Engineers abroad installation and commissioning service is
available.
3. Our engineers will held a training for boiler workers to
ensure the safe operation.
4. Free maintenance and repair for one year and lifelong
service.
Boiler application areas
![]() |
