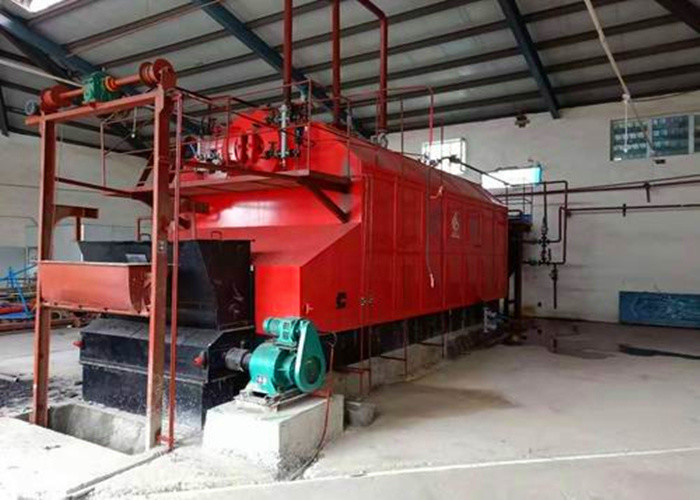

1t Wildly Used Fully Automatic Durable Coal Fired Thermal Oil
Boiler
The coal-fired heat-conducting oil furnace uses a circulating oil
pump to force the liquid phase circulation, and then transmits the
heat to the heat equipment before returning to reheat. Coal-fired
thermal oil furnaces are widely used in petrochemicals, textile
printing and dyeing, plastic rubber, paper, oil, synthetic fibers,
artificial panels, fiberboard thermoforming, drying, non-stop
steaming and other industries. Mineral cotton board processing,
gypsum board drying, asphalt heating, candy processing, honeycomb
processing, noodle drying, food industry, biscuit drying,
oil-squeezed beverage drying, paint and other building materials
industry 350 degrees Celsius below the heat source supply, food
processing, food processing, food processing, biscuit drying,
grease extraction beverage drying, paint and so on. D processing,
wood processing, asphalt heating, carton production, vegetable
dehydration, paint, casting sand drying.
Part of product parameters
YY(Q)W-700Y(Q)
| NO; | Name | Unit | Number | Description |
| 1 | Rated thermal power | KW | 700 | |
| 2 | Rated working power | Mpa | 1.0 | |
| 3 | Rated inlet/outlet ℃ | ℃ | 310/290 | |
| 4 | Design efficiency | ％ | 92.45(Oil) 92.13(Gas) | |
| 5 | Boiler heat efficiency | ％ | More than 98% | Be added economizer |
| 6 | Design fuels | / | Light oil,Gas | |
| 7 | Fuels LHV | MJ/kg | 42.917(Oil) | |
| MJ/Nm3 | 35.438(Gas) | |
| 8 | Consumption of fuels | kg/h | 70.77(Oil) | |
| Nm³/h | 86.53(Gas) | Be added economizer |
| 9 | Radiation heating area | m² | 7.199 | |
| Convection heating area | m² | 28.71 | |
| GGH heating area | m² | 10.965 | |
| 10 | Fume temperature | ℃ | 136.68(Oil) | |
| ℃ | 137.02 (Gas) | |
| 11 | Fume temperature | ℃ | 60-80 | Be added economizer |
| 12 | Excess air coefficient | / | 1.15 | |
| 13 | Volume | m3 | 0.46 | |
| 14 | Bulk weight | kg | 4250 | |
| 15 | Bulk size | mm | 3256×1727×2181 | |
| 16 | Chimney | mm | Φ325×10000 | |
| 17 | Combustion model | / | Micro positive pressure | Chamber combustion |
| 18 | Boiler structure feature | Horizontal-type chamber combustion |
| 19 | Control way | Full automation/Manual |
| 20 | Ignition way | High-tension/Electrode |
Our services
Pre-sale service:
We help customer choose the best boiler model according to
different requirements of various industry. Before delivery we
will provide foundation drawing, layout drawing, boiler room
layout, etc.
In-sale service:
We keep 24 hours online and keep close contacts during the
production process to ensure on time delivery with perfect
finished product.
After-sale service:
1.provide full range of original spare parts.
2.Engineers abroad installation and commissioning service is
available.
3.Our engineers will held a training for boiler workers to
ensure the safe operation.
4.Free maintenance and repair for one year and lifelong
service.
